Guide: Using the Bootloader

Written by Pat Hanrahan and Julie Zelenski

What is a bootloader?

You will edit and compile programs on your laptop, but you must transfer the compiled program to the Pi to execute it. One way to move a program from your laptop to the Pi is using a micro-SD card. You would insert the card on your laptop, copy the newly compiled program onto it, eject the card and then insert into Pi. You can see how following up each re-compile with this process would quickly become tedious!

Instead, you can set up a serial connection between your laptop and the Pi and use a bootloader to transfer the program. The bootloader runs on your Pi and listens on the serial connection. On your laptop, you send the newly compiled program over the serial connection to the waiting bootloader. The bootloader receives the program and writes it to the memory of the Pi, a process called "loading" the program. After the program is loaded, the bootloader jumps to the start address of the program, and the program begins to run.

Using a bootloader, the cycle to run a newly-compiled program is just:

  1. Reset the Raspberry Pi to restart the bootloader
  2. Use rpi-run.py from your laptop to send your program to the bootloader

The bootloader we are using was developed by David Welch and modified by Dawson Engler and Julie Zelenski. If you have some time, we highly recommend you explore David Welch's github repository of code for bare-metal development on Raspberry Pi.

This guide walks you through configuring and using the bootloader.

Configure micro-SD card for bootloader

You should have previously set up a micro-SD card for your Pi with the firmware files from $CS107E/firmware as directed in the SD card guide.

The firmware files include the program bootloader.bin; this is the compiled binary for the bootloader. Insert the SD card into your laptop and copy bootloader.bin to kernel.img. Eject the card and insert it into the micro-SD slot on your Pi. The next and every subsequent time that you reset the Pi, the bootloader will run.

Connect your laptop to the Pi

You will use a CP2102 USB to serial breakout board (hereafter referred to as just “USB-serial”) to connect your laptop to the Pi. The CP2102 is the chip that converts from a USB interface to a serial interface.

Do you have the CP2102 driver installed? To use the USB-serial, your laptop must have the CS2012 console driver installed. This was covered in the installation instructions. See section "CP2102 console driver" in the installation guide for your OS.

One end of the USB-serial is a USB Type A connector that plugs into any USB port on your laptop. The other end contains a 6 pin header. Two of the pins deliver 5V and GND. They can be used to power the Pi; for details, consult the Powering the Pi Guide.

Two other pins on the USB-serial are used for transmitting (TX) and receiving (RX). The Pi also has a TX and RX pin on its GPIO header. Review the Pi's pinout diagram to find the pins labeled UART TXD and UART RXD.

Use female-female jumpers to connect the TX and RX pins on your Pi to the TX and RX pins on the USB-serial. By convention, the transmit TX on one end is connected to the receive RX on the other end.

In the configuration pictured below, the green wire connects the RX header pin on the USB-serial to the TX GPIO on the Pi's header. The blue wire connects the TX header pin to the Pi's RX GPIO.

USB-serial to Pi connections

The above photo is the USB-serial version we are using in Winter Quarter 2023. The pins on your USB-serial may be in different positions or have different label names. Don't just follow the picture blindly!

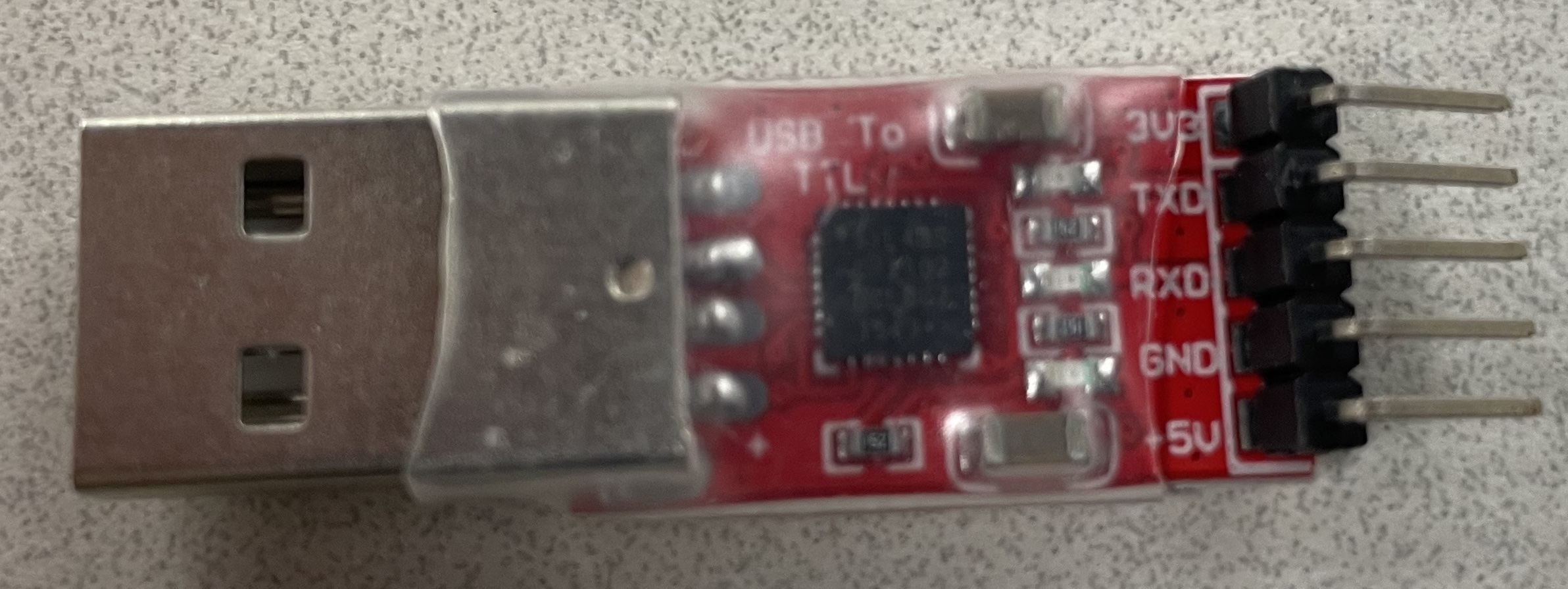

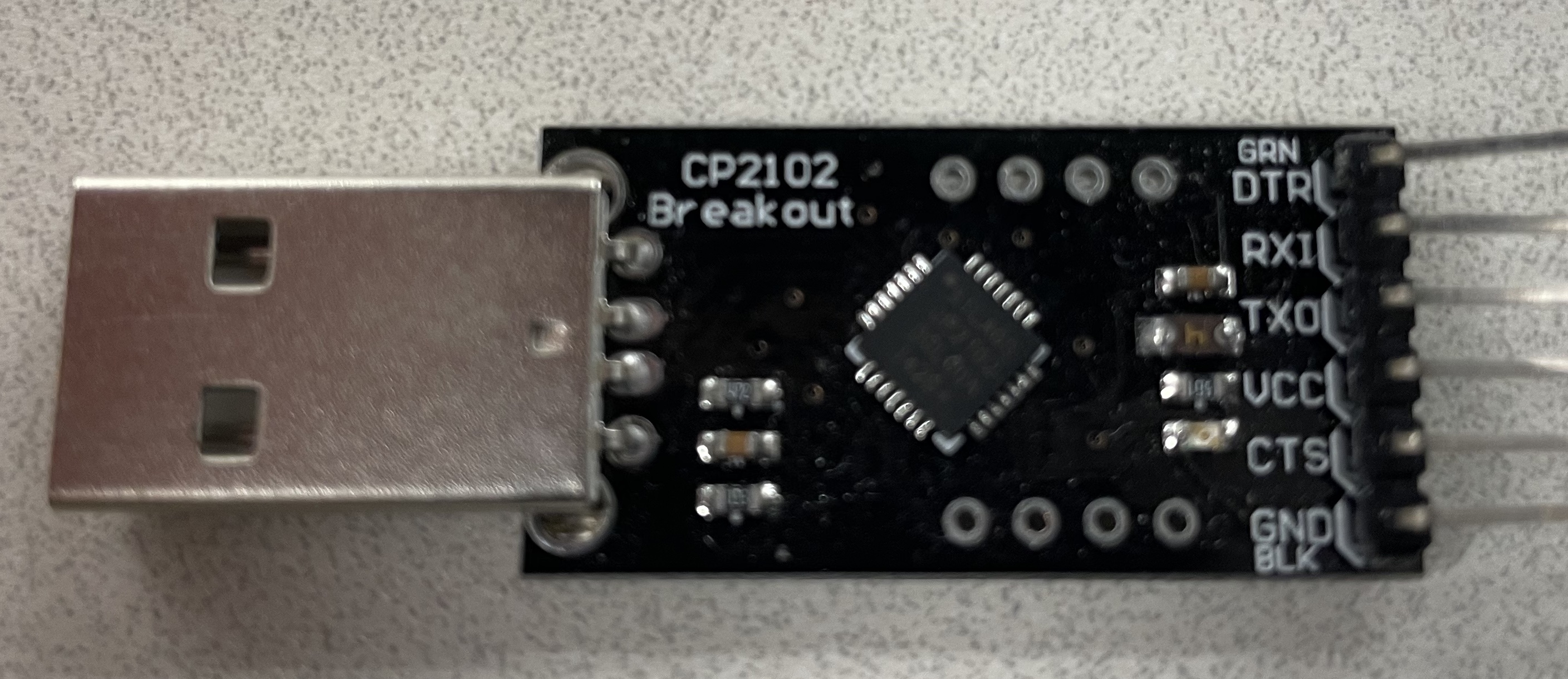

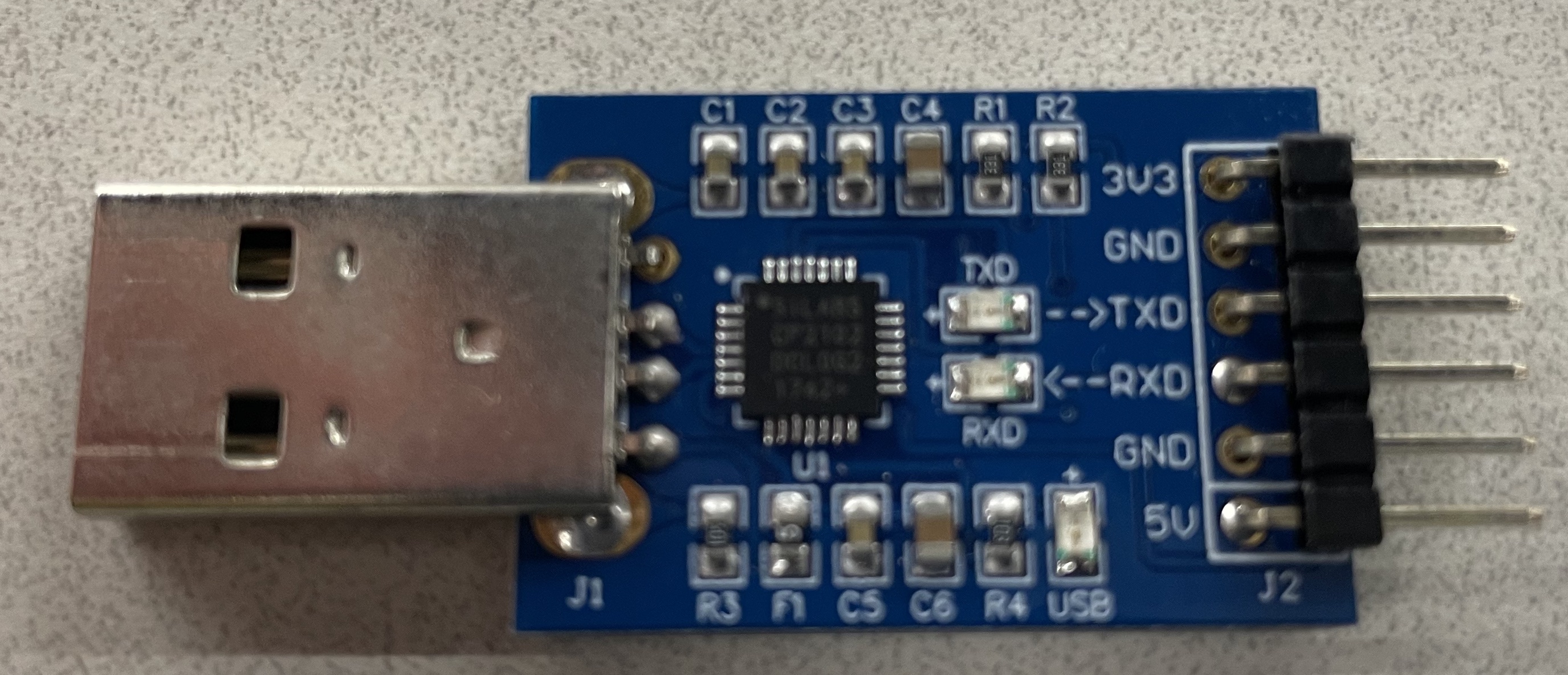

For example, here are a few other USB-serial variants (click to enlarge): V1 V2 V3

Load and run a program

The rpi-run.py script sends a binary file from your laptop to the bootloader. Change to the firmware directory and send the blink program:

$ cd $CS107E/firmware
$ rpi-run.py blink-actled.bin
Found serial device: /dev/cu.SLAB_USBtoUART
Sending `blink-actled.bin` (72 bytes): .
Successfully sent!

After a brief pause, you should see the green activity LED on the Pi slowly blinking.

To load and run a different program, your must first reset the Pi by briefly unplugging the USB-serial. This step is necessary to restart the bootloader so it is ready to receive the program you sent via rpi-run.py.

Troubleshooting

If you are having bootloader trouble, work through this checklist to find and resolve your issue.

  1. Reset Pi and verify bootloader is running by looking for its "heartbeat".

    • When the bootloader is running, it repeatedly gives two short flashes of the ACT LED (the green LED on the Pi board). This "da-dum" is the heartbeat that tells you the bootloader is ready and listening.

    • If your Pi doesn't have a heartbeat, the most common cause is because you have already bootloaded a program which is now running on the Pi. To stop that program and restart the bootloader, you must reset the Pi. Do that now! You can reset the Pi by briefly unplugging the USB-serial or using your reset switch.

  2. If bootloader does not run after reset, check the micro-SD card.

    • Be sure that the micro-SD card is fully inserted into the slot on the underside of the Pi.

    • Verify the files of the micro-SD card by inserting it into your laptop. There should be a file named kernel.img that is a copy of the file originally called bootloader.bin from the $CS107E/firmware directory.

  3. If bootloader is running, but your laptop fails to communicate with it, check your connections.

    • The TX and RX from your USB-serial should be connected to RX and TX pins on your Pi. Remember: TX should go to RX and vice versa.
    • If your jumper cables have become stressed/worn, try replacing them with fresh ones.

##
